24 m WWII German Navy Boat converted to Classic Yacht
History
24 m Steel frames / wooden planking hull, Classic motorSailer yacht rebuilt from 1938 WWII German Navy SHIP (TF104) Originally built in Lürssen Shipyard Germany.
Survived the II war, surrendered to the British Navy and converted into a yacht in ‘87 with a whole rebuilt from its keels and ribs. (At that time Costing +million Marks)
She has 2 cabins for 4 guests and accommodation for 1 crew. Beautiful full beam saloon located amidships. Equipped with Air-conditioning system and heating system.
Over the years she had few refits, main one being in 1987 in which the vessel was converted to a motor-sailor and a new MWN diesel engine with 8 cylinders was installed, last refit being in 2020.
The last refit includes New Electrical Panels with automatic load distribution (Generator kicks in automatically when load raise) Deep service of her main engine and hydraulic system (which runs the bow thruster) Painting and reinforcing the hull, adding a new battery set, refreshing all mechanical systems in the engine room and a new Garmin navigation equipment.
Main Features
Built: 1938
Shipyard: Lürssen, Germany
Refitted: 1987, 2004, 2012,2020
Hull material Steel/Wood (Frames from steel covered with wood planking)
Naval Architecture: German Navy
LOA : 24 m
Yacht Beam: 4.7m
Draught at deepest: 1.5m
Main Engines – 1 X MWM 345 hp (From 1987)
Cruise Speed is 7.5 Knots @ 850 RPM
Fuel consumption @20 Liter Per Hour at 7.5 knots.
Top Speed 12 knots.
Registration: Delaware, US
Accommodation

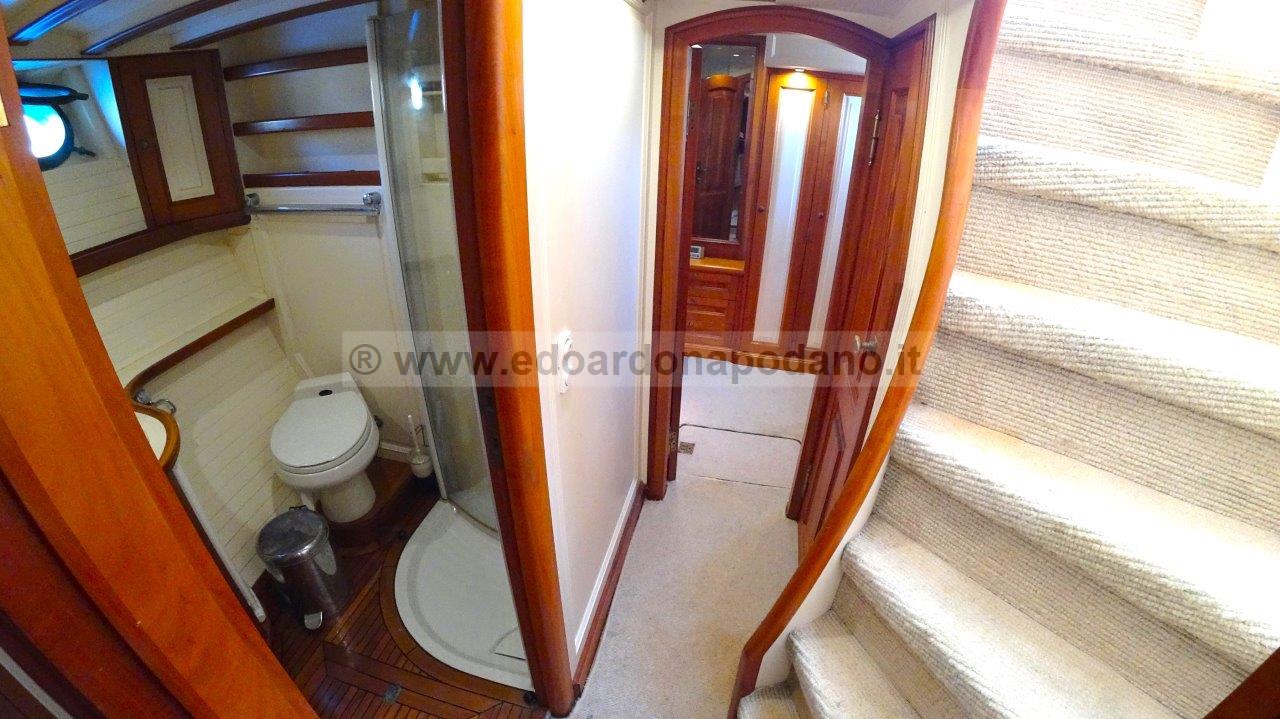

2 cabins for 4 guests.
2 Bert’s with separate showers
Large full bean Saloon amidships.
Technical Info
Engine – Installed in 1987 / 1 x 345hp MWM / TRHS 518 A Heavy duty diesel
(MWM is owned by CATERPILLAR)
Engine Hours – 4,350 hrs. / August 2024
Fuel consumption –
Range –
Generators 1 X Cummins Onan 12 kw (14,750 hrs. August 2024)
1 X Kohler 8 Kw (1,170 hrs. / August 2024)
Bow Thruster – Hydraulic powered by main engine.
Boiler – 60 liter electrical
Air condition – Chiller system with distribution to 6 x units
Tankage
Fuel 6.000 Liter
Fresh water: 1200 Liter
Wastewater 2.500 litre (Gray + Black)
Navigation and Communication
Magnetic compass X 1
Garmin GPS / Chart-Plotter / NEW 2021
Radar FURUNO
Auto-Pilot Raytheon A
VHF – Sailor
SSB radio ICOM M470
Electrical System
2 X Generators with total power – 20 Kw
New, 2 X Charger / Inverters VITRON MultiPlus/ MasterVolt
MPPT 150 / 70 – Tr
Siemens PLM system.
Updated circuit, braker box/system
Deck Equipment
Windlass – Massive windlass combined with winch.
Electronic crane on the fore deck for dinghy lifting and launching.
Anchors 1 X 150 kg
Anchor Chain 18 mm / 87 meter long
Passarella Hanged manually.

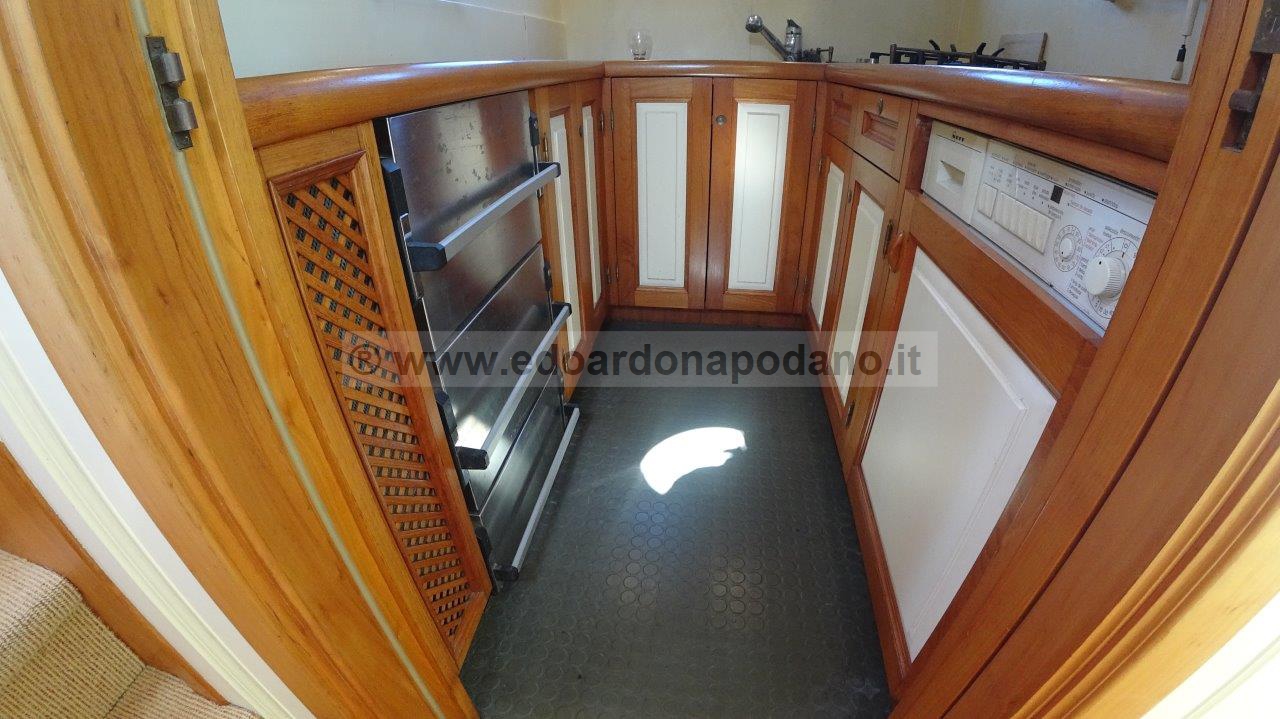

Gally & Appliances

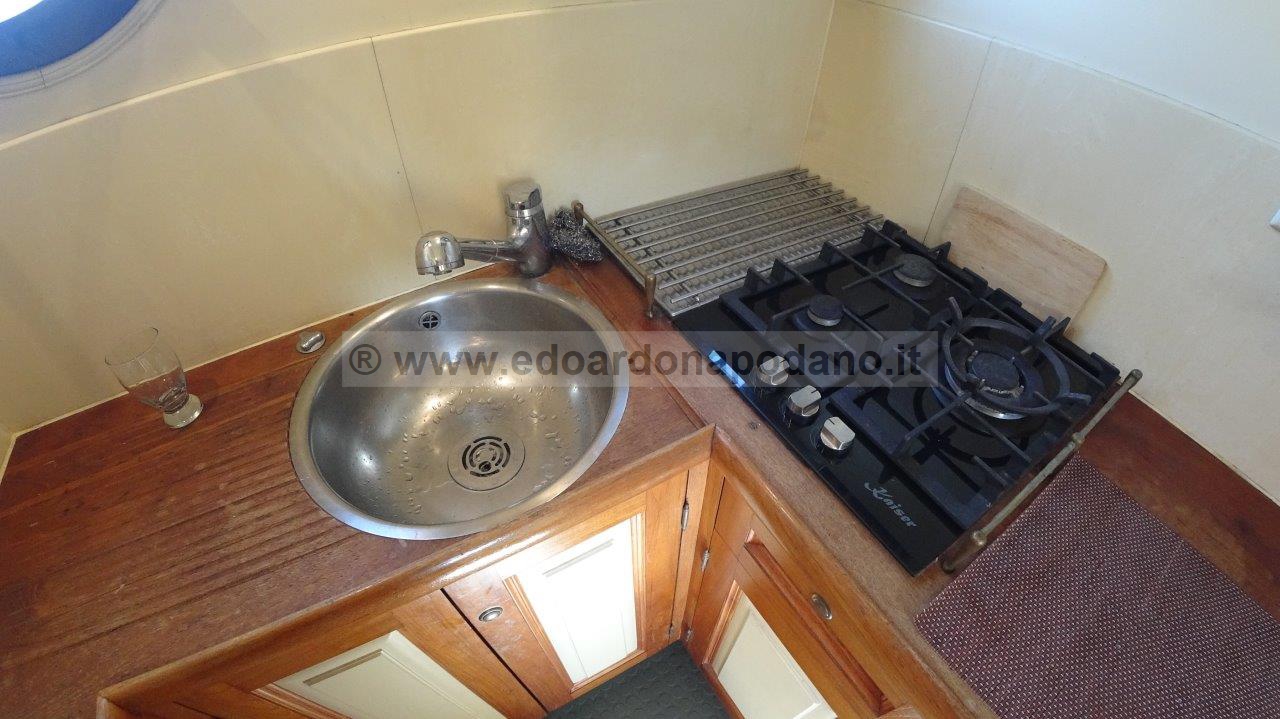

Stove – Kaiser
Oven – Miele
Freezer Large (Located at the corridor)
Small fridge
Large 3 X drawers
fridge
Washing Machine (located at the galley)
Tender & Toys
Wooden Sailing Dinghy 2.50 meter
