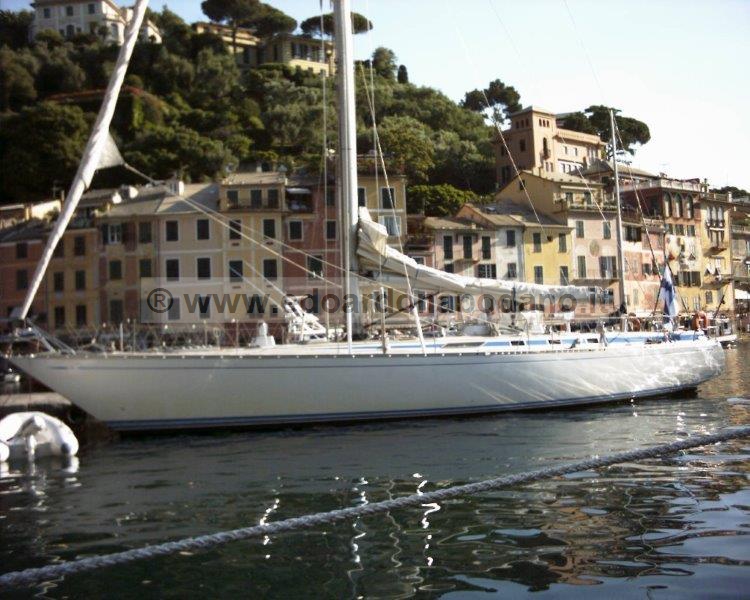

Swan 57
Yard Nautor
Project Sparkman & Stephens
Year 1979
Fuel Tank 600 lt
Water tank 800 lt
Lenght 17.65 m
Beam 4.83 m
Draft 2.95 m
Flag Finland
Engine Perkins 73 cv
Generator Onan 6 kw
Specs
Keel: Fin
Engines
Engine 1:
Engine/Fuel Type: Diesel
HULL & APPENDAGES
The hull has been constructed in Single Skin GRP
Coaming and Boot top in Blue Gelcoat
Keel is cast antimony lead
Steering System
Skeg rudder with steel rudder stock
Stainless steel destroyer type steering wheel with elkhide cover
Binacle with covered steering compass mounted on top
DECK
Deck is in GRP Sandwich covered is teak planking
Aluminium Toe Rail
Anchor Windlass
Deck Showers in Cockpit and on foredeck
Coskpit table
Sun Awning
Spray hood at main entrance
Anchor – 40Kg CQR anchor (new February 2001)
80m of 12mm chain
Spare Fortress anchor in aluminium 21 lbs
Winches
Lewmar winches
Primaries powered by coffee grinder pedestels
Electric anchor windlass – Lofrans Falcon 1500W 24v
Sailing Hardware
Nautor custom genoa turning blocks
Lewmar genoa tracks
Main sheet traveller forward of cockpit to allow free movement
INTERIOR
General
Interior is finished in teak with hand rubbed satin varnish
Overhead panels in wood with vinyl covering
Blue cotton upholstery for saloon cushions
Unique galley forward version with four cabins
Foward Cabin
Berths on either side outboard
Sail storage bins below
Independent access to deck via sliding hatch
Head compartment aft with mirrors, wash basin shower and Blake marine WC
Forward Guest Cabin
Upper and lower berths
Storage lockers and drawers forward
Saloon
U-shaped settee with folding table to port
Bookshelves outboard of table to port
Settee to starboard with storage lockers forward and aft
Berth outboard of settee with storage lockers forward to starboard
Galley
Located forward and to starboard
Galley Equipment
Top loading freezer and refrigerator compartments
Front loading lower refrigerator
Alpes Inox gas stove/oven with four burners

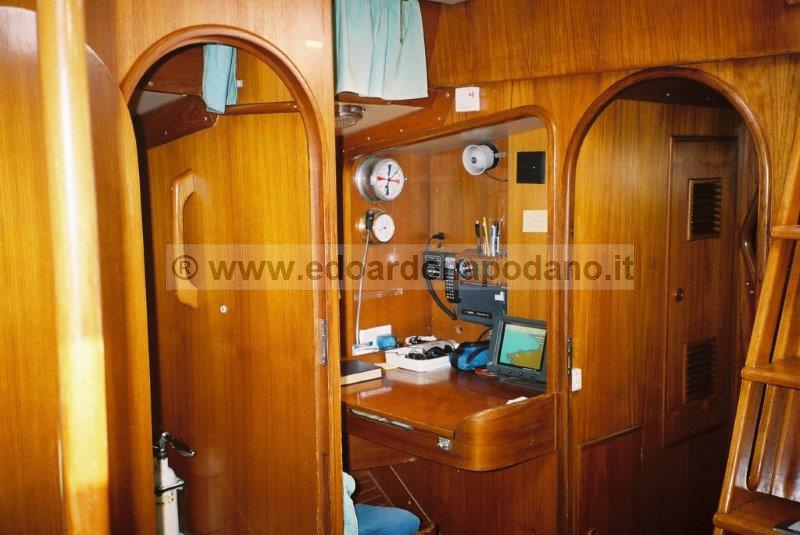

Nav Station
Located starboard midhsips
Forward facing nav desk with instruments recessed into bulkhead
Electrical distribution panel located outboard of navigators seat
Aft Guest Cabin (starboard)
Upper and lower berths outboard
Storage lockers and mirrors aft and inboard
Aft Cabin
Single berth to starboard and twin berth to port
Ensuite head with wash basin, mirror, shower and Blake Marine head
Settee centreline aft
ENGINE & SYSTEMS
Perkins 4.236M 54.4Kw – 73Hp at 2500 RPM
Three blade Max-Prop
6kva Onan Generator
Plumbing Systems
Pressurized hot/cold water system
Refrigeration system by Iceberg powered by engine or 230v
230 v hot water heater
Water heated by engine calorifier
Ventilation System
Dorade vents
Drainage System
Manual and electric bilge pumps
ELECTRICAL SYSTEM
DC System
New engine and service batteries in 2011
AC System
220v shore power system
Chargers/Inverters
220v battery charger
Engine alternator
ELECTRONIC SYSTEMS
Navigation Instruments
B&G Sailing instruments (New 2001)
GPS Seiva from 2001
Autopilot by Autohelm 7000 new 2001
Communications Systems
Shipmate VHF RS 8300 Dual
MAST & RIGGING
Nautor aluminium two-spreader mast with conventional oval boom
Hydraulic backstay, vang and outhaul
Reckman furler
EQUIPMENT
General Equipment
5hp Johnson outboard engine with mounting bracket on transom
Cockpit cushions
Bimini over main cockpit
Deck shower hot/cold
Passerelle
Safety Equipment
5x Portable fire extinguishers
Arimar inflatable liferaft for 8 passengers
Horseshoe buoy with light and rope
SAILS
Full batten mainsail
Furling genoa
Heavy staysail
Stormjib
Spinnaker
Gennaker
